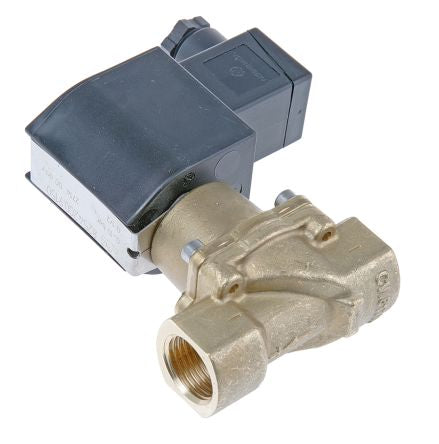

Buschjost Solenoid Valve 8254200.9154.23049, 2 port , NC, 230 V ac, 1/2in [8254200.9154.23049]; 529-5310
by Buschjost
0₫
Mã kho: 5295310
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 230 V ac |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 1/2 in G Female |
| Connection Size | 1/2in |
| Default Valve Position | NC |
| Suitable Applications | Air, Oil, Water |
| Type | 43863 |
| Orifice Diameter | 12mm |
| Body Material | Brass |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -10 → +50 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Series | 82540 |
| Connection Gender | Female |
| Flow Factor Kv | 3.4m³/h |
| Thread Standard or Connection Type | G |
