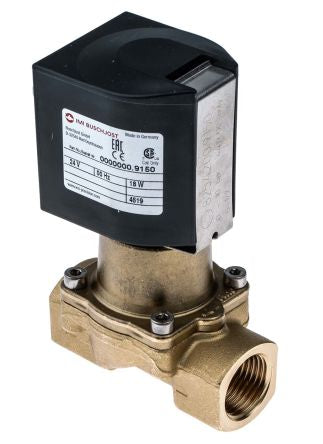

Buschjost Solenoid Valve 8254200.9151.02400, 2 port , NC, 24 V dc, 1/2in [8254200.9151.02400]; 529-5427
by Buschjost
0₫
Mã kho: 5295427
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 V dc |
Number of Ports | 2 |
Operation | Pilot |
Connection | 1/2 in G Female |
Connection Size | 1/2in |
Default Valve Position | NC |
Suitable Applications | Air, Oil, Water |
Type | 43863 |
Orifice Diameter | 12mm |
Body Material | Brass |
Maximum Working Pressure | 10 bar |
Operating Temperature Range | -10 → +50 °C |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +50°C |
Flow Factor Kv | 3.4m³/h |
Connection Gender | Female |
Series | 82540 |
Thread Standard or Connection Type | G |
