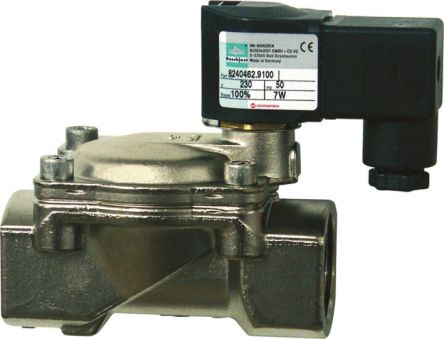

Buschjost Solenoid Valve 8240400.9101.02400, 2 port , NC, 24 V dc, 1in [8240400.9101.02400]; 529-5405
by Buschjost
0₫
Mã kho: 5295405
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 1 in G Female |
| Connection Size | 1in |
| Default Valve Position | NC |
| Suitable Applications | Air, Water |
| Type | 43863 |
| Orifice Diameter | 25mm |
| Body Material | Brass |
| Maximum Working Pressure | 16 bar |
| Operating Temperature Range | -10 → +50 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Flow Factor Kv | 9.5m³/h |
| Thread Standard or Connection Type | G |
| Series | 82400 |
| Connection Gender | Female |
