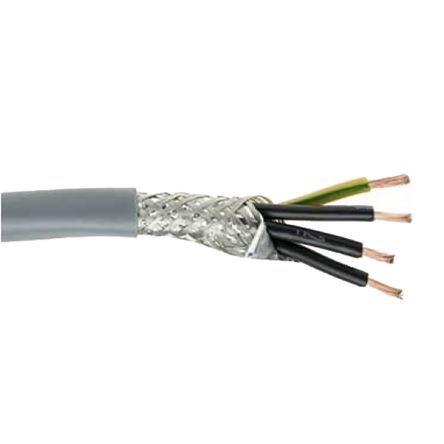

Belden Belden CY 4 Core CY Control Cable 1 mm², 50m, Screened [CYSC04.0150]; 628-2264
by Belden
0₫
Mã kho: 6282264
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 1 mm² |
| Length | 50m |
| Current Rating | 0.416666666666667 |
| Outer Diameter | 8.1mm |
| Voltage Rating | 300/500 V |
| Sheath Colour | Grey |
| American Wire Gauge | 17 AWG |
| Earth Cable | Yes |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +70°C |
| Sheath Material | Polyvinyl Chloride PVC |
| Series | Belden CY |
| Core Strands | 32/0.2 mm |
| Filler Material | PET Foil |
| Insulation Material | PVC |
| Conductor Resistance | 19.5 Ω/km |
| Screened/Unscreened | Screened |
| Screen Type | Tinned Copper Braid |
| Conductor Material | Copper |
| Minimum Bend Radius | 10 x D |
