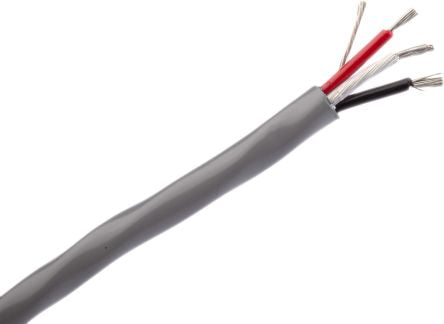

Belden 3 Conductor Foil Industrial Cable 0.82 mm²(Euroclass Eca) Chrome PVC Sheath, 152m Reel [8770.00U152]; 331-9010
by Belden
0₫
Mã kho: 3319010
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 0.82 mm² |
| Screened/Unscreened | Screened |
| Length | 152m |
| Sheath Colour | Chrome |
| American Wire Gauge | 18 AWG |
| Outer Diameter | 6.1mm |
| Current Rating | 5.3 A |
| Screen Type | Foil |
| Maximum Operating Temperature | +60°C |
| Core Strands | 16/0.25 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 300 V |
| Fire Behaviour | Flame Retardant |
| Standards Met | Euroclass Eca |
| Minimum Operating Temperature | -20°C |
| Conductor Resistance | 21.65 Ω/km |
| Insulation Material | PE |
| Conductor Material | Tinned Copper |
| Drain Wire | Yes |
| Minimum Bend Radius | 10 x Diameter |
