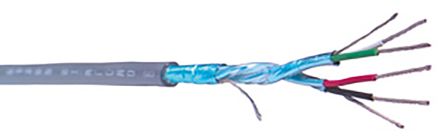

Belden Chrome Installation Cable, F/UTP Flame Retardant 0.33 mm² CSA 5.46mm OD 22 AWG 300 V 152m [8728 060U500]; 382-661
by Belden
0₫
Mã kho: 382661
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Fire Behaviour | Flame Retardant |
| Number of Pairs | 2 |
| Shield Type | F/UTP |
| Length | 152m |
| Outer Diameter | 5.46mm |
| Outer Sheath Material | PVC |
| Core Strands | 44042 |
| American Wire Gauge | 22 AWG |
| Cross Sectional Area | 0.33 mm² |
| Voltage Rating | 300 V |
| Sheath Colour | Chrome |
| Cable Shape | Twisted Pair |
| Number of Strands | 7 |
| Size of Strands | 30 AWG |
| Current Rating | 2.3 A per conductor @ 25°C |
| Standards Met | Euroclass Eca |
