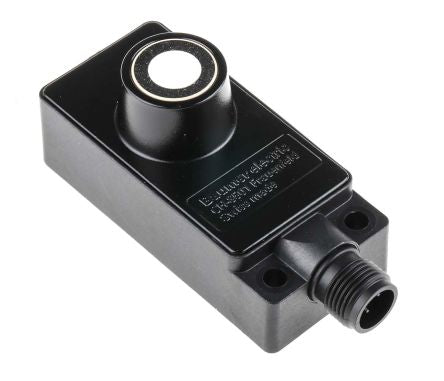

Baumer Ultrasonic Sensor Block, 60 → 400 mm, PNP, M12 Connector IP67 [UNDK 30P1712/S14]; 446-0232
by Baumer
0₫
Mã kho: 4460232
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 60 → 400 mm |
| Output Type | PNP-NO |
| Body Style | Block |
| Transducer Frequency | 400kHz |
| Maximum DC Voltage | 30V |
| Supply Voltage | 12 → 30 V dc |
| Terminal Type | M12 Connector |
| IP Rating | IP67 |
| Housing Material | Die Cast Zinc |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Length | 65mm |
| Depth | 31.1mm |
| Switching Current | 200 mA |
| Minimum Operating Temperature | -25°C |
| Dimensions | 65 x 30 x 31.1 mm |
| Width | 30mm |
| Maximum Operating Temperature | +60°C |
| Response Time | 25 ms |
