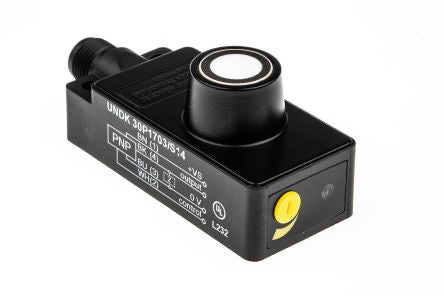

Baumer Ultrasonic Sensor Block, 100 → 1000 mm, PNP, M12 Connector IP67 [UNDK 30P1703/S14]; 203-7098
by Baumer
0₫
Mã kho: 2037098
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Detection Range | 100 → 1000 mm |
Output Type | PNP-NO |
Body Style | Block |
Transducer Frequency | 240kHz |
Maximum DC Voltage | 30V |
Supply Voltage | 12 → 30 V dc |
Terminal Type | M12 Connector |
IP Rating | IP67 |
Housing Material | Die Cast Zinc |
Reverse Polarity Protection | Yes |
Short Circuit Overload Protection | Yes |
Maximum Operating Temperature | +60°C |
Response Time | 50 ms |
Width | 30mm |
Length | 65mm |
Dimensions | 65 x 30 x 31.1 mm |
Switching Current | 200 mA |
Minimum Operating Temperature | -10°C |
Depth | 31.1mm |
