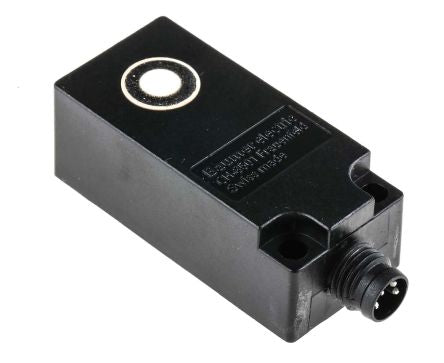

Baumer Ultrasonic Sensor Block, 10 → 200 mm, PNP, M8 Connector IP67 [UNDK 20P6914/S35A]; 446-0226
by Baumer
0₫
Mã kho: 4460226
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Detection Range | 10 → 200 mm |
Output Type | PNP-NO |
Body Style | Block |
Transducer Frequency | 380kHz |
Maximum DC Voltage | 30V |
Supply Voltage | 12 → 30 V dc |
Terminal Type | M8 Connector |
IP Rating | IP67 |
Housing Material | PET |
Reverse Polarity Protection | Yes |
Short Circuit Overload Protection | Yes |
Minimum Operating Temperature | -10°C |
Switching Current | 200 mA |
Width | 20mm |
Length | 42mm |
Depth | 15mm |
Dimensions | 42 x 20 x 15 mm |
Maximum Operating Temperature | +60°C |
Response Time | 10 ms |
