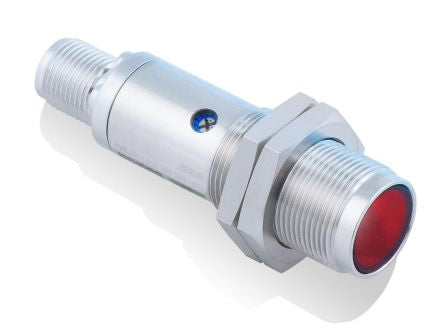

Baumer Through Beam (Emitter and Receiver) Photoelectric Sensor 13 (Actual) mm, 20 (Nominal) mm Detection Range PNP [OR18W EI-11157851 OR18W TI-ZZZP]; 136-5796
by Baumer
0₫
Mã kho: 1365796
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Barrel |
| Detection Type | Through Beam (Emitter and Receiver) |
| Detection Range | 20 mm |
| Output Type | PNP |
| Electrical Connection | 4-Pin M12 Connector |
| Maximum DC Voltage | 30V |
| Terminal Type | Threaded |
| Light Source | Infrared |
| IP Rating | IP67, IP69K |
| Maximum Current | 40 mA |
| Response Time | <2 ms |
| Housing Material | Stainless Steel |
| Series | OR18 |
| Standards Met | CE, CULus |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -25°C |
