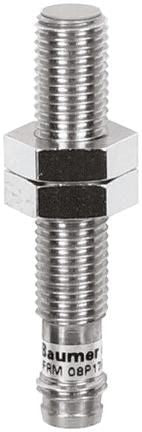

Baumer, M8 x 1, Analogue Inductive Sensor 46mm Length, 15 → 30 V dc supply voltage , IP67 Rating [IWRM 08U 9501 S35]; 214-662
by Baumer
0₫
Mã kho: 214662
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | 0-10 V, Analogue |
| Detection Range | 2 mm |
| Terminal Type | M8 - 3 Pin |
| Supply Voltage | 15 → 30 V dc |
| Length | 46mm |
| Width | 8mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| IP Rating | IP67 |
| Switching Current | 25 mA |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE, CULus Listed, EAC |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -10°C |
| Shielding | Partial |
| Short Circuit Overload Protection | Yes |
