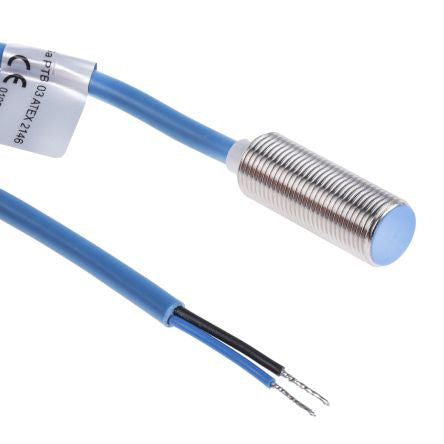

Baumer, M12 x 1, NAMUR Inductive Sensor 30mm Length, 5 → 30 V dc supply voltage , IP67 Rating [IFRM 12X9503]; 703-3707
by Baumer
0₫
Mã kho: 7033707
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | NAMUR |
| Detection Range | 2 mm |
| Terminal Type | Cable |
| Supply Voltage | 5 → 30 V dc |
| Length | 30mm |
| Width | 12mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| Switching Current | 4 mA |
| IP Rating | IP67 |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -25°C |
| Hazardous Area Certification | ATEX |
| Shielding | Shielded |
| Maximum Operating Temperature | +75°C |
| Maximum Switching Frequency | 2kHz |
| Standards Met | CE, CULus Listed, EAC |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | No |
