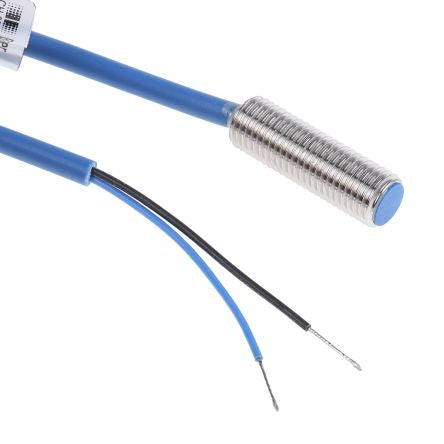

Baumer, M8 x 1, NAMUR Inductive Sensor 25mm Length, 5 → 30 V dc supply voltage , IP67 Rating [IFRM 08X9503]; 703-3704
by Baumer
0₫
Mã kho: 7033704
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | NAMUR |
| Detection Range | 1.5 mm |
| Terminal Type | Cable |
| Supply Voltage | 5 → 30 V dc |
| Length | 25mm |
| Width | 8mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| Switching Current | 4 mA |
| IP Rating | IP67 |
| Housing Material | Stainless Steel |
| Shielding | Shielded |
| Standards Met | CE, CULus Listed, EAC |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | No |
| Maximum Switching Frequency | 5kHz |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +75°C |
| Short Circuit Overload Protection | Yes |
