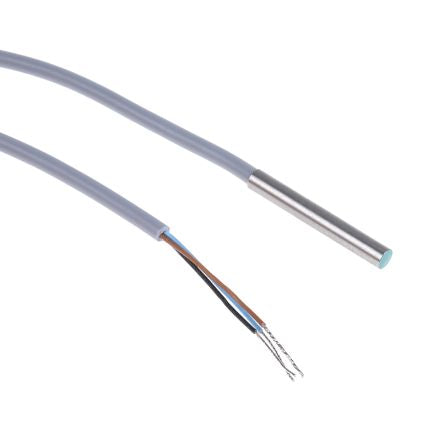

Baumer PNP-NO Inductive Sensor 22mm Length, 10 → 30 V dc supply voltage , IP67 Rating [IFRM 03P1501/L]; 437-0684
by Baumer
0₫
Mã kho: 4370684
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Output Type | PNP-NO |
| Detection Range | 8 mm |
| Terminal Type | Cable |
| Supply Voltage | 10 → 30 V dc |
| Length | 22mm |
| Width | 3mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| Switching Current | 100 mA |
| IP Rating | IP67 |
| Housing Material | Stainless Steel |
| Standards Met | CE, CULus Listed, EAC |
| Reverse Polarity Protection | Yes |
| Shielding | Shielded |
| Short Circuit Overload Protection | Yes |
| Maximum Switching Frequency | 3kHz |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +75°C |
