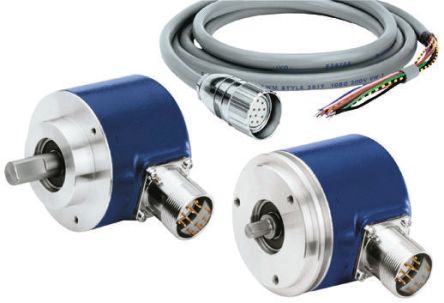

Baumer IVO Incremental Encoder 2500 ppr 10000rpm 4.75 → 30 V dc [GI356.170R030]; 481-7543
by Baumer
0₫
Mã kho: 4817543
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pulses Per Revolution | 2500 |
| Encoder Technology | Optical |
| Maximum Revolutions | 10000rpm |
| Output Signal Type | HTL/Push Pull |
| Shaft Type | Solid shaft |
| Supply Voltage | 4.75 → 30 V dc |
| Shaft Diameter | 6mm |
| IP Rating | IP54 |
| Overall Width | 58 Dia.mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Connection Type | Flange connector M23 |
| Switching Frequency | 150 kHz |
| Mounting Type | Synchro Flange |
| Series | GI356 |
