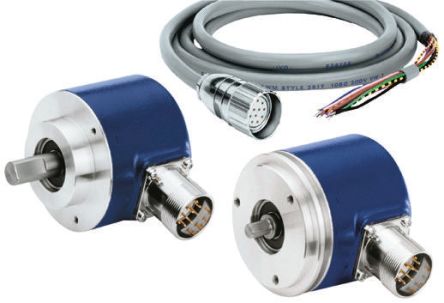

Baumer IVO Incremental Encoder 200 ppr 10000rpm 4.75 → 30 V dc [GI356.170R006]; 481-7470
by Baumer
0₫
Mã kho: 4817470
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pulses Per Revolution | 200 |
Encoder Technology | Optical |
Maximum Revolutions | 10000rpm |
Output Signal Type | HTL/Push Pull |
Shaft Type | Solid shaft |
Supply Voltage | 4.75 → 30 V dc |
Shaft Diameter | 6mm |
IP Rating | IP54 |
Overall Width | 58 Dia.mm |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +85°C |
Connection Type | Flange connector M23 |
Mounting Type | Synchro Flange |
Series | GI356 |
Switching Frequency | 150 kHz |
