![Baumer G0355.075R073 4817206](http://nguyenxuong.com/cdn/shop/products/RF481744-01_95364a59-665c-4ade-822f-82794d70b415_444x303.jpg?v=1594410887)

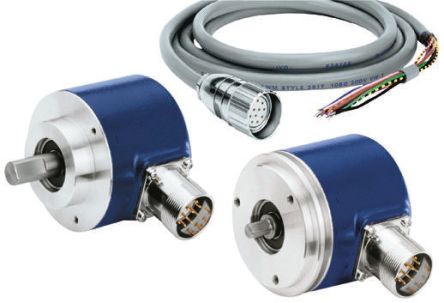

Baumer IVO Incremental Encoder 10000 ppr 10000rpm 4.75 → 30 V dc [G0355.075R073]; 481-7206
by Baumer
0₫
Mã kho: 4817206
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Pulses Per Revolution | 10000 |
Encoder Technology | Optical |
Maximum Revolutions | 10000rpm |
Output Signal Type | HTL/Push Pull |
Shaft Type | Solid shaft |
Shaft Diameter | 10mm |
Supply Voltage | 4.75 → 30 V dc |
IP Rating | IP54 |
Overall Width | 58 Dia.mm |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +85°C |
Connection Type | Flange connector M23 |
Mounting Type | Clamping Flange |
Switching Frequency | 300 kHz |
Series | G0355 |
