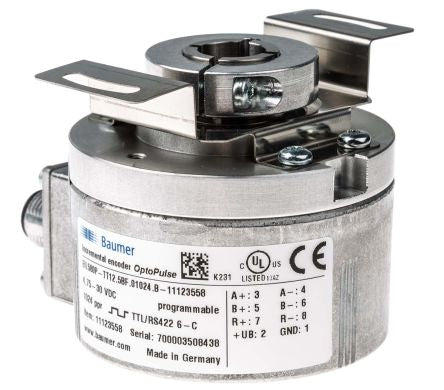

Baumer Incremental Encoder 65536 ppr 6000rpm Through Hollow 4.75 → 30 V dc [EIL580P-TT12.5BF.01024.B]; 818-2989
by Baumer
0₫
Mã kho: 8182989
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pulses Per Revolution | 1 → 65536 |
| Encoder Technology | Optical |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | TTL/HTL |
| Shaft Type | Hollow shaft |
| Shaft Diameter | 12mm |
| Supply Voltage | 4.75 → 30 V dc |
| IP Rating | IP65 |
| Overall Width | 58 Dia.mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
| Series | EIL580P |
| Connection Type | Flange connector M12 |
| Mounting Type | Through Hollow Shaft Flange |
| Switching Frequency | 160 kHz, 300 kHz |
