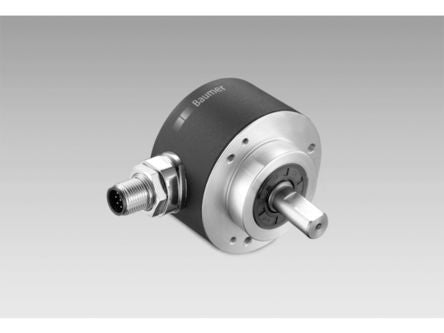

Absolute mag encoder analog shaft 10mm [EAM580R-SC0.7NC4.A36A1.A]; 189-2688
by Baumer
0₫
Mã kho: 1892688
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Encoder Technology | Magnetic |
| Maximum Revolutions | 6000rpm |
| Shaft Type | Solid shaft |
| Shaft Diameter | 10mm |
| Supply Voltage | 14 → 30 V dc |
| Resolution | 12 bit |
| IP Rating | IP67 |
| Interface | Analog 4-20 mA |
| Overall Width | 58mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Mounting Type | Clamping Flange |
| Series | EAM580 |
| Connection Type | Flange connector M12 |
