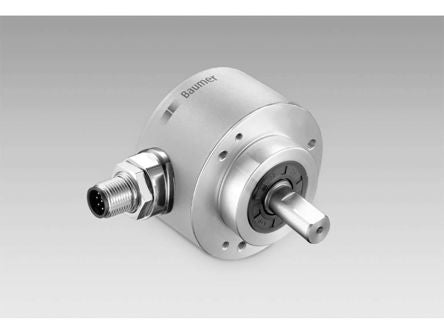

CANopen Multiturn Absolute Encoder [EAM580-SC0.7LC6.14180.A]; 188-3533
by Baumer
0₫
Mã kho: 1883533
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Encoder Technology | Magnetic |
| Maximum Revolutions | 6000rpm |
| Shaft Type | Solid shaft |
| Shaft Diameter | 10mm |
| Supply Voltage | 10 → 30 V dc |
| Resolution | MT 18 bit, ST 14 bit |
| IP Rating | IP67 |
| Interface | CANOpen |
| Overall Width | 58mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Connection Type | Cable output 2 m |
| Mounting Type | Clamping Flange |
| Series | EAM580 |
