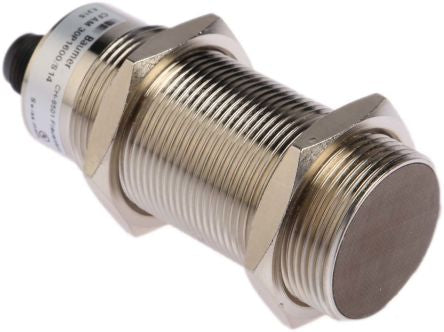

Baumer Capacitive sensor 4 → 15 mm length 82mm PNP-NO supply voltage 10 → 30 V dc IP65 [CFAM 30P 1600 S14]; 446-0197
by Baumer
0₫
Mã kho: 4460197
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO |
| Detection Range | 15 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP65 |
| Maximum DC Voltage | 30V |
| Mounting Style | Flush |
| Length | 82mm |
| Width | 30mm |
| Switching Current | 200 mA |
| Housing Material | Nickel Plated Brass |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +75°C |
| Standards Met | CE, CULus |
| Switching Frequency | 50 Hz |
| Dimensions | 30 x 82 mm |
| Reverse Polarity Protection | Yes |
| Shielding | Shielded |
| Minimum Operating Temperature | -25°C |
