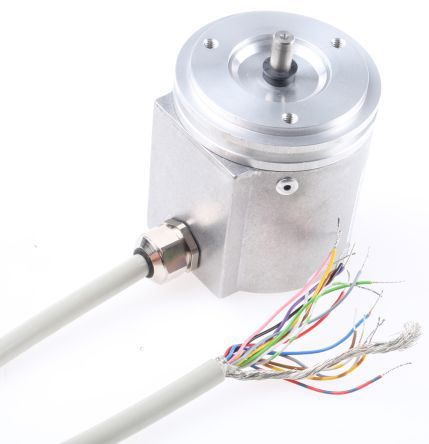

Baumer Absolute Encoder 4096Pulses ppr ≤12000 (Mechanical) rpm, ≤6000 (Electric) rpm 12 Parallel 6 mm Shaft [BMSV 58S1G24K12/00C65]; 144-6454
by Baumer
0₫
Mã kho: 1446454
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Encoder Technology | Optical |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | Push Pull |
| Shaft Type | Solid shaft |
| Supply Voltage | 10 → 30 V dc |
| Shaft Diameter | 6mm |
| Resolution | ST 12 bit |
| IP Rating | IP65 |
| Interface | Parallel-Gray |
| Overall Width | 58 Dia.mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Series | BMSV |
| Connection Type | Cable output 2 m |
| Mounting Type | Synchro Flange |
