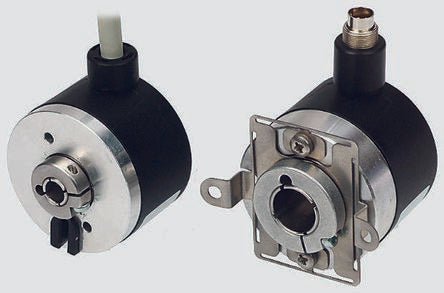

Baumer Incremental Encoder 360 ppr 12000rpm End 10 → 30 V dc [BHK 16.24K.0360-I2-5]; 499-7863
by Baumer
0₫
Mã kho: 4997863
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pulses Per Revolution | 360 |
| Encoder Technology | Optical |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | HTL/Push Pull |
| Shaft Type | Hollow shaft |
| Supply Voltage | 10 → 30 V dc |
| Shaft Diameter | 12mm |
| IP Rating | IP42 |
| Overall Width | 40 Dia.mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Connection Type | Cable output 1 m |
| Series | BHK |
| Switching Frequency | ≤100 kHz |
| Mounting Type | Hollow Shaft Flange |
