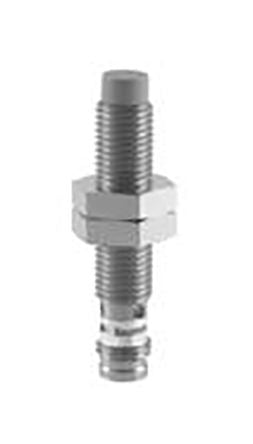

Baumer, M8 x 1, PNP-NO Inductive Sensor 46mm Length, 6 → 36 V dc supply voltage , IP67 Rating [11148770]; 103-8481
by Baumer
0₫
Mã kho: 1038481
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Thread Size | M8 x 1 |
Output Type | PNP-NO |
Detection Range | 6 mm |
Terminal Type | M8 - 3 Pin |
Supply Voltage | 6 → 36 V dc |
Length | 46mm |
Width | 8mm |
Maximum DC Voltage | 36V |
Mounting Type | Non Flush |
Switching Current | 100 mA |
IP Rating | IP67 |
Housing Material | Stainless Steel |
Minimum Operating Temperature | -25°C |
Short Circuit Overload Protection | Yes |
Shielding | Unshielded |
Maximum Switching Frequency | 400Hz |
Reverse Polarity Protection | Yes |
Standards Met | CE, CULus Listed, EAC |
Maximum Operating Temperature | +75°C |
