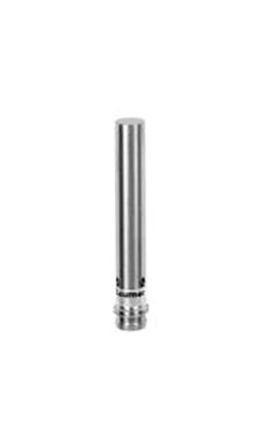

Baumer, M8 x 1, PNP-NO Inductive Sensor 46mm Length, 6 → 36 V dc supply voltage , IP67 Rating [11148736]; 103-8480
by Baumer
0₫
Mã kho: 1038480
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Output Type | PNP-NO |
| Detection Range | 3 mm |
| Terminal Type | M8 - 3 Pin |
| Supply Voltage | 6 → 36 V dc |
| Length | 46mm |
| Width | 6.5mm |
| Maximum DC Voltage | 36V |
| Mounting Type | Flush Mount |
| IP Rating | IP67 |
| Switching Current | 100 mA |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 2kHz |
| Maximum Operating Temperature | +75°C |
| Reverse Polarity Protection | Yes |
| Standards Met | CE, CULus Listed, EAC |
| Short Circuit Overload Protection | Yes |
| Shielding | Unshielded |
