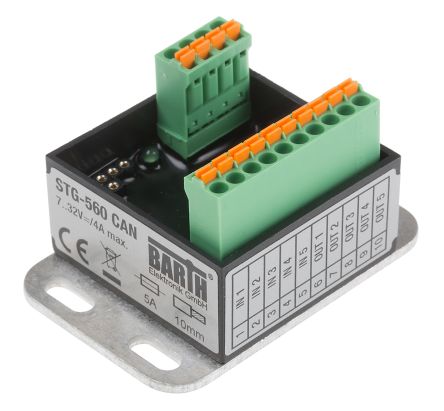

BARTH STG-560 Logic Module, 7 → 32 V dc, 5 x Input, 5 x Output Without Display [0850-0560]; 124-4307
by BARTH
0₫
Mã kho: 1244307
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | STG-560 |
| Supply Voltage | 7 → 32 V dc |
| Output Type | Digital, PWM, Solid State |
| Number of Outputs | 5 |
| Input Type | Analogue, Digital |
| Number of Inputs | 5 |
| Mounting Type | Panel Mount |
| Communication Port Type | CAN, RS485, USB |
| Display Included | No |
| Width | 40mm |
| Length | 40mm |
| Depth | 22mm |
| Dimensions | 40 x 40 x 22 mm |
| Termination Type | Spring |
| Programming Language Used | Open Source MICROCHIP ICSP (C/ BASIC/Assembler) |
| Programming Interface | Computer |
| Number of Communication Ports | 2 |
| Module Type | Mini-PLC I/O Module |
| Network Type | CANOpen |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
| Output Current | 1.5 |
| Standards Met | EN 50081-1, EN 50082-1, EN 60068-2-6:2008, EN 60068-2-78:2002, EN 60730-1, EN 61010-1 |
| Application | Industrial Automation, Technical Education, Test Systems |
