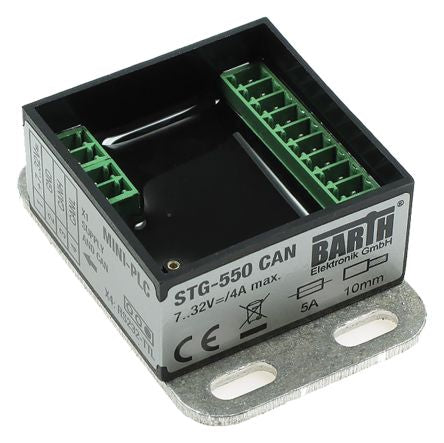

BARTH STG-550 CAN Logic Module, 7 → 32 V dc, 5 x Input, 5 x Output Without Display [0850-0550]; 885-0888
by BARTH
0₫
Mã kho: 8850888
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | STG-550 CAN |
| Supply Voltage | 7 → 32 V dc |
| Output Type | Digital |
| Number of Outputs | 5 |
| Input Type | Analogue, Digital |
| Number of Inputs | 5 |
| Mounting Type | Panel Mount |
| Communication Port Type | TTL-232, USB |
| Display Included | No |
| Width | 40mm |
| Length | 40mm |
| Depth | 22mm |
| Dimensions | 40 x 40 x 22 mm |
| Termination Type | Spring |
| Programming Interface | TTL-232 |
| Number of Communication Ports | 3 |
| Programming Language Used | MiCon-L |
| Network Type | CAN |
| Module Type | Mini-PLC I/O Module |
| Maximum Operating Temperature | +70°C |
| Output Current | 1.5 A |
| Minimum Operating Temperature | -40°C |
| Standards Met | EN 60068-2-6, EN 60068-2-78, EN50081-1, EN50082-1, EN60730-1, EN61010-1, ISO 16750-3, 2004/108/EG, 2006/95/EG |
| Application | Automotive and Maritime Technology, Building Automation, Environmental Technology, Industrial Automation, Light and Show Technology |
