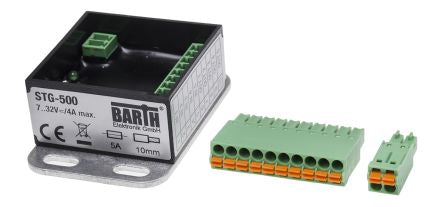

BARTH STG-500 Logic Module, 7 → 32 V dc, 5 x Input, 5 x Output Without Display [0850-0500]; 864-4535
by BARTH
0₫
Mã kho: 8644535
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | STG-500 |
| Supply Voltage | 7 → 32 V dc |
| Output Type | PWM, Solid State |
| Number of Outputs | 5 |
| Input Type | Analogue, Digital |
| Number of Inputs | 5 |
| Mounting Type | Panel Mount |
| Communication Port Type | COM, RS232 |
| Display Included | No |
| Width | 40mm |
| Length | 40mm |
| Depth | 22mm |
| Termination Type | Spring |
| Dimensions | 40 x 40 x 22 mm |
| Programming Interface | Computer |
| Number of Communication Ports | 2 |
| Programming Language Used | MiCon-L |
| Module Type | Mini-PLC I/O Module |
| Minimum Operating Temperature | -40°C |
| Output Current | 0.333333333333333 |
| Maximum Operating Temperature | +70°C |
