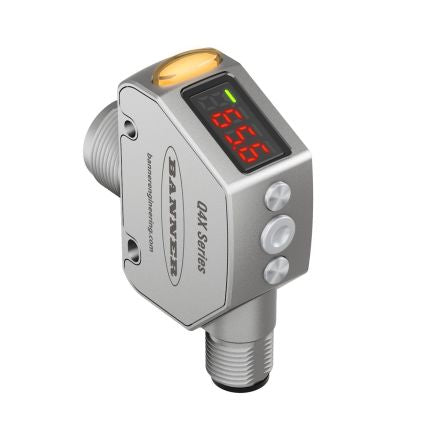

Banner Distance Photoelectric Sensor 25 → 100 mm Detection Range NPN, PNP IP67, IP68, IP69K Rectangular Style [Q4XTBLAF100-Q8]; 175-7827
by Banner
0₫
Mã kho: 1757827
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Distance |
| Detection Range | 25 → 100 mm |
| Output Type | NPN/PNP |
| Electrical Connection | 5-Pin M12 Connector |
| Maximum DC Voltage | 30V |
| Terminal Type | M12 Connector |
| Light Source | LED |
| IP Rating | IP67, IP68, IP69K |
| Maximum Current | 100 mA |
| Response Time | 1.5 ms |
| Housing Material | Stainless Steel |
| Standards Met | CE Certified, CULus Certified, DIN40050-9, IEC60529, MIL-STD-202G, UL Listed |
| Maximum Operating Temperature | +50°C |
| Mounting Type | Threaded |
| Minimum Operating Temperature | -10°C |
| Series | Q4X |
