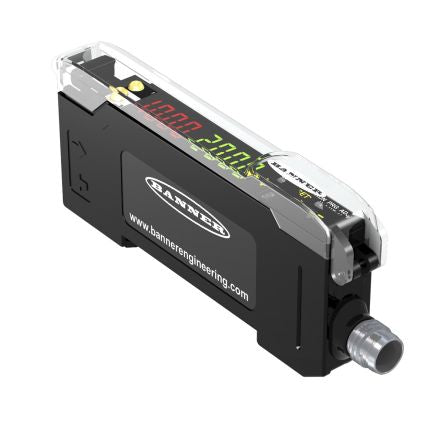

Banner Fibre Amplifier 3000 mm, PNP, Push Pull Output IO-Link, 960 mW, IP50, 10 → 30 V dc [DF-G3-KD-Q7]; 177-8712
by Banner
0₫
Mã kho: 1778712
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 3000 mm |
| Output Type | PNP, Push Pull |
| Terminal Type | Cable |
| Response Time | 2 (Standard) ms, 8 (Long Range) ms, 24 (Extra Long Range) ms, 500 (High Speed) μs, 1000 (Fast) μs |
| Light Source | Red LED |
| Communication Protocol | IO-LINK |
| Electrical Connection | 4-Wire |
| Power Consumption | 960 mW |
| IP Rating | IP50 |
| Housing Material | Thermoplastic |
| Supply Voltage | 10 → 30 V dc |
| Length | 86.3mm |
| Interface | IO-Link |
| Width | 10mm |
| Mounting Type | DIN Rail |
| Minimum Operating Temperature | -10°C |
| Depth | 31.5mm |
| Standards Met | CE Certified, CULus Listed |
| Maximum Operating Temperature | +55°C |
| Dimensions | 86.3 x 10 x 31.5 mm |
