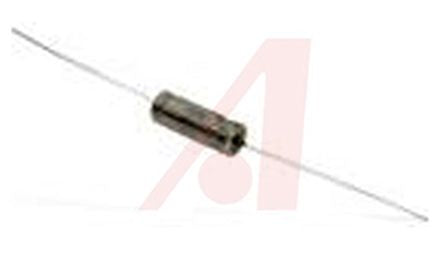

EPCOS Tantalum Capacitor 470μF 50V dc Wet ±10% Tolerance TWA Series [TWAD477K050CBSZ0000]; 886-2604
by AVX
0₫
Mã kho: 8862604
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 470 µF |
| Voltage | 50 V dc |
| Package/Case | D |
| Equivalent Series Resistance | 750mΩ |
| Tolerance | ±10% |
| Height | 19.46mm |
| Dimensions | 9.52 (Dia.) x 19.46mm |
| Series | TWA |
| Electrolyte Type | Wet |
| Dielectric Material Family | Tantalum |
| Lead Diameter | 0.64mm |
| Maximum Operating Temperature | +125°C |
| Tolerance Plus | 0.1 |
| Surge Voltage | 57.5V |
| Minimum Operating Temperature | -55°C |
| Tolerance Minus | -0.1 |
| Terminal Type | Axial |
| Diameter | 9.52mm |
| Leakage Current | 25 μA |
