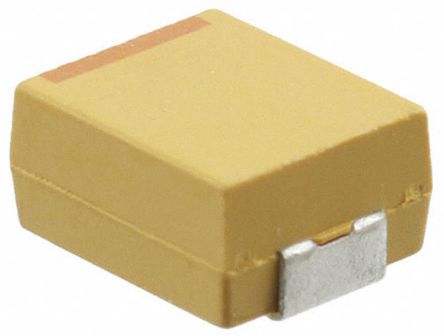

EPCOS Tantalum Capacitor 68μF 35V dc Electrolytic Solid TPS Series [TPSV686M035R0150]; 135-0360
by AVX
0₫
Mã kho: 1350360
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 68 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 2924 |
| Equivalent Series Resistance | 150mΩ |
| Lead Pitch | 4.4mm |
| Length | 7.3mm |
| Height | 3.55mm |
| Dimensions | 7.3 x 6.1 x 3.55mm |
| Series | TPS |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Dielectric Material Family | Tantalum |
| Surge Voltage | 28 V dc @ ≤+125 °C, 46 V dc @ ≤+85 °C |
| Dissipation Factor | 0.06 |
| Minimum Operating Temperature | -55°C |
| Terminal Type | SMT |
| Leakage Current | 23.8 μA |
| Polarised | Polar |
