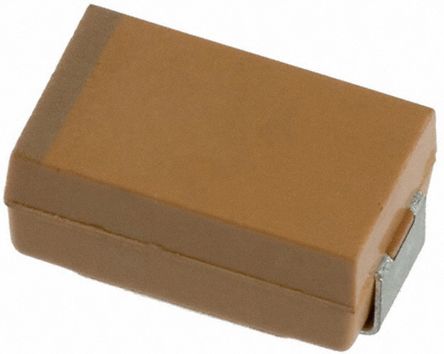

AVX Tantalum Capacitor 10μF 10V dc Electrolytic Solid TPS Series [TPST106K010R1000]; 173-2776
by AVX
0₫
Mã kho: 1732776
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 10 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 1210 (3225M) |
| Equivalent Series Resistance | 1Ω |
| Lead Pitch | 1.4mm |
| Length | 3.5mm |
| Height | 1.2mm |
| Dimensions | 3.5 x 2.8 x 1.2mm |
| Series | TPS |
| Electrolyte Type | Solid |
| Dissipation Factor | 0.06 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125°C |
| Surge Voltage | 8 V dc @ +125 °C, 13 V dc @ +85 °C |
| Leakage Current | 1 μA |
| Polarised | Polar |
