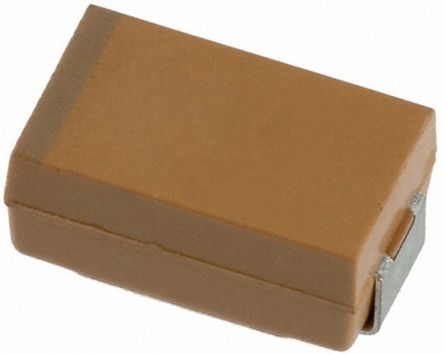

AVX Tantalum Capacitor 470μF 10V dc Electrolytic Solid 2917 Series [TPSE477M010R0045]; 135-8416
by AVX
0₫
Mã kho: 1358416
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 470 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 2917 |
| Equivalent Series Resistance | 45mΩ |
| Lead Pitch | 4.4mm |
| Length | 7.3mm |
| Height | 4.1mm |
| Dimensions | 7.3 x 4.3 x 4.1mm |
| Series | 2917 |
| Electrolyte Type | Solid |
| Terminal Type | SMT |
| Maximum Operating Temperature | +125°C |
| Dielectric Material Family | Tantalum |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 0.1 |
| Polarised | Polar |
| Leakage Current | 28 μA |
| Surge Voltage | 8 V dc @ +125 °C, 13 V dc @ +85 °C |
