![AVX TPSC476K016R0350 1366184](http://nguyenxuong.com/cdn/shop/products/Y1366184-01_444x333.jpg?v=1594038631)

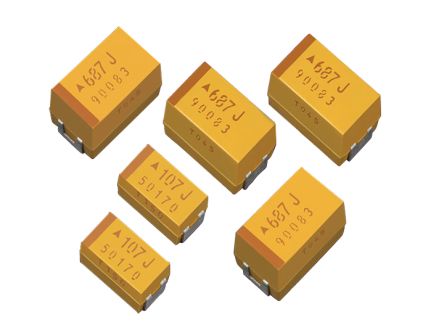

AVX Electrolytic Capacitor 47μF 16V dc Electrolytic Solid ±10% Tolerance TPS Series [TPSC476K016R0350]; 136-6184
by AVX
0₫
Mã kho: 1366184
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Electrolytic |
Capacitance | 47 µF |
Voltage | 16 V dc |
Mounting Type | Surface Mount |
Package/Case | 6032-28 |
Equivalent Series Resistance | 350mΩ |
Lead Pitch | 2.9mm |
Tolerance | ±10% |
Length | 6mm |
Depth | 3.2mm |
Height | 2.6mm |
Dimensions | 6 x 3.2 x 2.6mm |
Series | TPS |
Electrolyte Type | Solid |
Tolerance Plus | 0.1 |
Surge Voltage | 13 V @ 125 °C |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
Dielectric Material Family | Tantalum |
Terminal Type | SMT |
Dissipation Factor | 0.06 |
Leakage Current | 7.5 μA |
Polarised | Polar |
Tolerance Minus | -0.1 |
