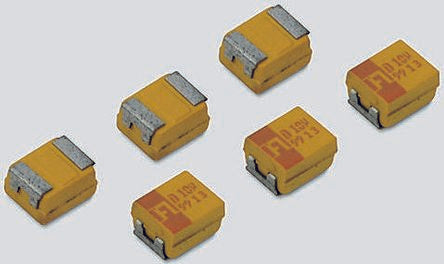

AVX Tantalum Capacitor 150μF 6.3V dc MnO2 Solid ±10% Tolerance TPS Series [TPSC157K006R0090]; 699-3630
by AVX
0₫
Mã kho: 6993630
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | MnO2 |
| Capacitance | 150 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 6032-28 |
| Equivalent Series Resistance | 90mΩ |
| Tolerance | ±10% |
| Length | 6mm |
| Depth | 3.2mm |
| Height | 2.6mm |
| Dimensions | 6 x 3.2 x 2.6mm |
| Series | TPS |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Tolerance Plus | 0.1 |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Surface Mount |
| Tolerance Minus | -0.1 |
| Leakage Current | 9.5 μA |
| Dissipation Factor | 0.06 |
