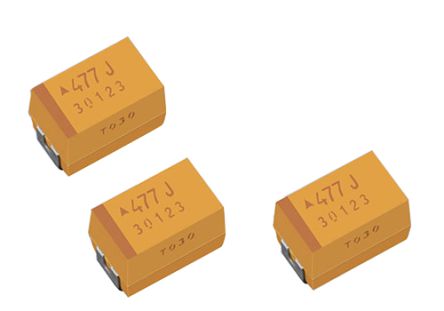

AVX Electrolytic Capacitor 470μF 10V dc Electrolytic Solid ±10% Tolerance TPM Series [TPME477K010R0030]; 144-1551
by AVX
0₫
Mã kho: 1441551
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 470 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 2917 |
| Equivalent Series Resistance | 30mΩ |
| Lead Pitch | 4.4mm |
| Tolerance | ±10% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 4.1mm |
| Dimensions | 7.3 x 4.3 x 4.1mm |
| Series | TPM |
| Electrolyte Type | Solid |
| Surge Voltage | 13 V @ ≤+85°C |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 0.06 |
| Tolerance Plus | 0.1 |
| Dielectric Material Family | Tantalum |
| Polarised | Polar |
| Tolerance Minus | -0.1 |
| Maximum Operating Temperature | +125°C |
| Terminal Type | SMT |
| Leakage Current | 47 μA |
