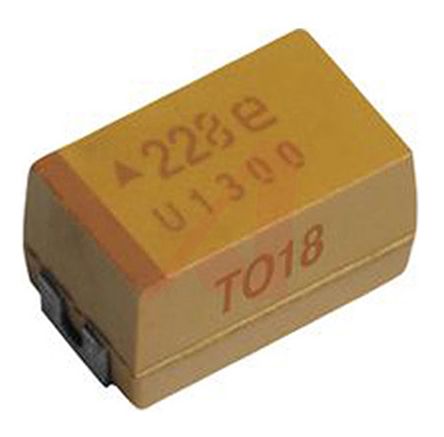

EPCOS Tantalum Capacitor 150μF 16V dc Electrolytic Solid ±20% Tolerance TPM Series [TPME157M016R0040]; 886-2326
by AVX
0₫
Mã kho: 8862326
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 150 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 7343-43 |
| Equivalent Series Resistance | 40mΩ |
| Lead Pitch | 4.4mm |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 4.1mm |
| Dimensions | 7.3 x 4.3 x 4.1mm |
| Series | TPM |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Leakage Current | 24 μA |
| Tolerance Minus | -0.2 |
| Terminal Type | SMD |
| Minimum Operating Temperature | -55°C |
| Surge Voltage | 13 V @ +125 °C, 20 V @ +85 °C |
| Tolerance Plus | 0.2 |
| Dissipation Factor | 0.06 |
| Dielectric Material Family | Tantalum |
