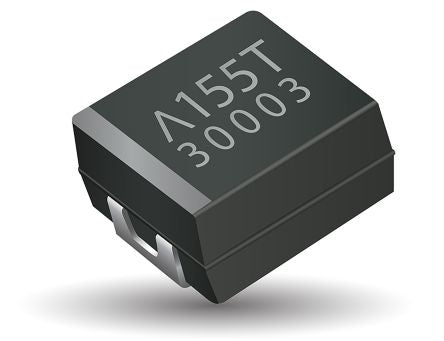

Tantalum Polymer Capacitor 220uF 10V 291 [TCQD227M010R0025E]; 186-4709
by AVX
0₫
Mã kho: 1864709
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 220 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 2917 (7343-31) |
| Equivalent Series Resistance | 25mΩ |
| Lead Pitch | 4.4mm |
| Automotive Standard | AEC-Q200 |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 2.9mm |
| Dimensions | 7.3 x 4.3 x 2.9mm |
| Series | TCQ |
| Electrolyte Type | Solid |
| Leakage Current | 220 μA |
| Polarised | Polar |
| Maximum Operating Temperature | +125°C |
| Tolerance Minus | -0.2 |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 0.06 |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Tantalum |
