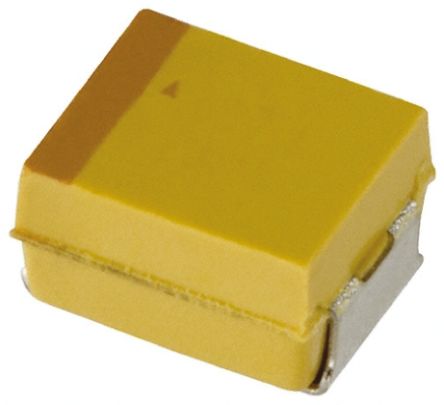

AVX Tantalum Capacitor 68μF 6.3V dc Polymer Solid ±20% Tolerance TCJ Series [TCJB686M006R0055]; 719-0620
by AVX
0₫
Mã kho: 7190620
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 68 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 3528-21 |
| Equivalent Series Resistance | 55mΩ |
| Tolerance | ±20% |
| Length | 3.5mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Series | TCJ |
| Electrolyte Type | Solid |
| Leakage Current | 40.8 μA |
| Tolerance Minus | -0.2 |
| Terminal Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +125°C |
| Dissipation Factor | 0.08 |
