![AVX TAP476K020CCS 8873446](http://nguyenxuong.com/cdn/shop/products/R8873446-01_234x444.jpg?v=1594429672)

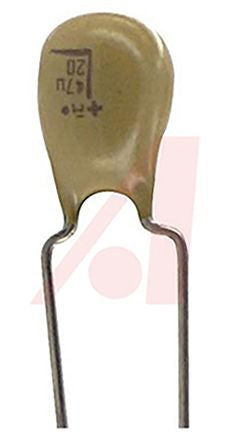

EPCOS Tantalum Capacitor 47μF 20V dc Electrolytic Solid ±10% Tolerance TAP Series [TAP476K020CCS]; 887-3446
by AVX
0₫
Mã kho: 8873446
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Electrolytic |
Capacitance | 47 µF |
Voltage | 20 V dc |
Package/Case | M |
Equivalent Series Resistance | 1Ω |
Lead Pitch | 5mm |
Tolerance | ±10% |
Height | 14.5mm |
Dimensions | 9 (Dia.) x 14.5mm |
Series | TAP |
Electrolyte Type | Solid |
Maximum Operating Temperature | +125°C |
Lead Diameter | 0.5mm |
Dissipation Factor | 0.08 |
Tolerance Plus | 0.1 |
Surge Voltage | 16 V @ ≤+125 °C, 26 V @ ≤+85 °C |
Dielectric Material Family | Tantalum |
Terminal Type | Radial |
Diameter | 9mm |
Tolerance Minus | -0.1 |
Leakage Current | 9.4 μA |
Minimum Operating Temperature | -55°C |
