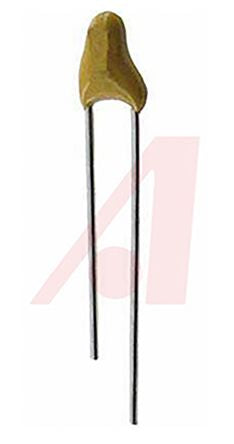

EPCOS Tantalum Capacitor 470nF 35V dc Electrolytic Solid ±10% Tolerance TAP Series [TAP474K035SCS]; 887-3405
by AVX
0₫
Mã kho: 8873405
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 470 nF |
| Voltage | 35 V dc |
| Package/Case | A |
| Equivalent Series Resistance | 13Ω |
| Lead Pitch | 2.5mm |
| Tolerance | ±10% |
| Height | 7mm |
| Dimensions | 4.5 (Dia.) x 7mm |
| Series | TAP |
| Electrolyte Type | Solid |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125°C |
| Dissipation Factor | 0.04 |
| Lead Diameter | 0.5mm |
| Tolerance Plus | 0.1 |
| Surge Voltage | 28 V @ ≤+125 °C, 46 V @ ≤+85 °C |
| Terminal Type | Radial |
| Minimum Operating Temperature | -55°C |
| Diameter | 4.5mm |
| Leakage Current | 0.5 μA |
| Tolerance Minus | -0.1 |
