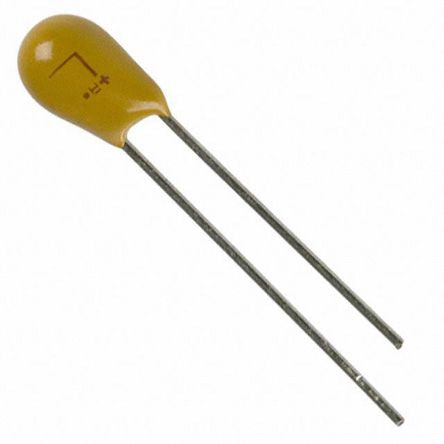

AVX Tantalum Capacitor 22μF 16V dc Solid ±20% Tolerance TAP Series [TAP226M016CCS]; 134-9759
by AVX
0₫
Mã kho: 1349759
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Equivalent Series Resistance | 2Ω |
| Lead Pitch | 5mm |
| Tolerance | ±20% |
| Height | 10mm |
| Dimensions | 6 (Dia.) x 10mm |
| Series | TAP |
| Electrolyte Type | Solid |
| Leakage Current | 2.8 μA |
| Dissipation Factor | 0.08 |
| Minimum Operating Temperature | -55°C |
| Surge Voltage | 65 V @ +85 °C |
| Lead Diameter | 0.5mm |
| Dielectric Material Family | Tantalum |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +125°C |
| Diameter | 6mm |
| Polarised | Polar |
| Tolerance Minus | -0.2 |
| Terminal Type | Radial |
