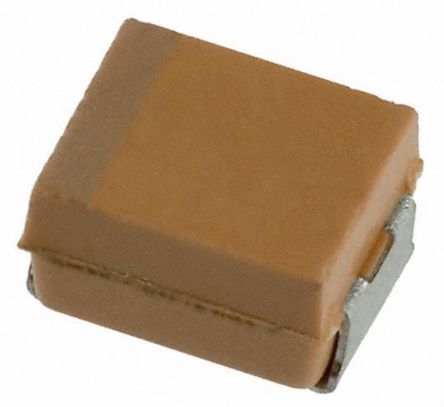

AVX Tantalum Capacitor 470nF 35V dc Tantalum Solid ±10% Tolerance TAJ Series [TAJB474K035RNJ]; 136-0241
by AVX
0₫
Mã kho: 1360241
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Tantalum |
| Capacitance | 470 nF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 3528-21 |
| Equivalent Series Resistance | 10Ω |
| Automotive Standard | AEC-Q200 |
| Lead Pitch | 1.4mm |
| Tolerance | ±10% |
| Length | 3.5mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Series | TAJ |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Leakage Current | 0.5 μA |
| Polarised | Polar |
| Tolerance Minus | -0.1 |
| Terminal Type | SMT |
| Dissipation Factor | 0.04 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Surge Voltage | 46V |
| Tolerance Plus | 0.1 |
