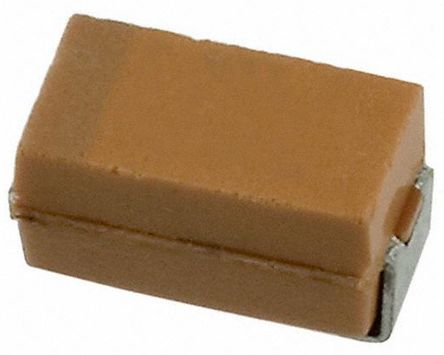

AVX Tantalum Capacitor 33μF 6.3V dc Electrolytic Solid ±20% Tolerance TAJ Series [TAJA336M006RNJ]; 136-0160
by AVX
0₫
Mã kho: 1360160
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Electrolytic |
Capacitance | 33 µF |
Voltage | 6.3 V dc |
Mounting Type | Surface Mount |
Package/Case | 1206 (3216M) |
Equivalent Series Resistance | 2.2Ω |
Lead Pitch | 1.1mm |
Tolerance | ±20% |
Length | 3.2mm |
Depth | 1.6mm |
Height | 1.6mm |
Dimensions | 3.2 x 1.6 x 1.6mm |
Series | TAJ |
Electrolyte Type | Solid |
Maximum Operating Temperature | +125°C |
Dielectric Material Family | Tantalum |
Minimum Operating Temperature | -55°C |
Dissipation Factor | 0.08 |
Terminal Type | SMT |
Surge Voltage | 5 V dc @ +125 °C, 8 V dc @ +85 °C |
Tolerance Plus | 0.2 |
Tolerance Minus | -0.2 |
Leakage Current | 2.1 μA |
Polarised | Polar |
