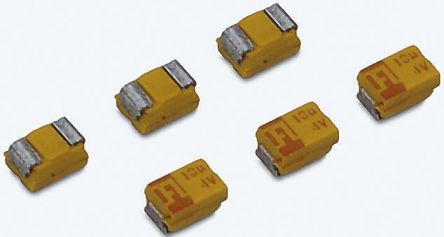

AVX Tantalum Capacitor 330nF 35V dc MnO2 Solid ±10% Tolerance TAJ Series [TAJA334K035R]; 699-2781
by AVX
0₫
Mã kho: 6992781
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | MnO2 |
| Capacitance | 330 nF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 3216-18 |
| Equivalent Series Resistance | 15Ω |
| Tolerance | ±10% |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 1.6mm |
| Dimensions | 3.2 x 1.6 x 1.6mm |
| Series | TAJ |
| Electrolyte Type | Solid |
| Leakage Current | 0.5 μA |
| Terminal Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Tolerance Minus | -0.1 |
| Tolerance Plus | 0.1 |
| Dissipation Factor | 0.04 |
| Maximum Operating Temperature | +125°C |
