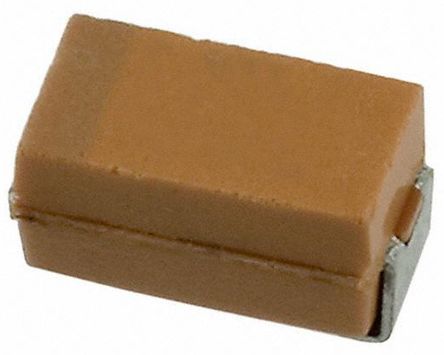

![AVX TAJA225K020RNJ 1360128](http://nguyenxuong.com/cdn/shop/products/R1360128-01_444x355.jpg?v=1594102065)
AVX Tantalum Capacitor 2.2μF 20V dc Electrolytic Solid ±10% Tolerance TAJ Series [TAJA225K020RNJ]; 136-0128
by AVX
0₫
Mã kho: 1360128
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Electrolytic |
Capacitance | 2.2 µF |
Voltage | 20 V dc |
Mounting Type | Surface Mount |
Package/Case | 1206 (3216M) |
Equivalent Series Resistance | 5.3Ω |
Lead Pitch | 1.1mm |
Tolerance | ±10% |
Length | 3.2mm |
Depth | 1.6mm |
Height | 1.6mm |
Dimensions | 3.2 x 1.6 x 1.6mm |
Series | TAJ |
Electrolyte Type | Solid |
Maximum Operating Temperature | +125°C |
Dissipation Factor | 0.06 |
Minimum Operating Temperature | -55°C |
Dielectric Material Family | Tantalum |
Surge Voltage | 16 V dc @ +125 °C, 26 V dc @ +85 °C |
Tolerance Plus | 0.1 |
Terminal Type | SMT |
Polarised | Polar |
Leakage Current | 0.5 μA |
Tolerance Minus | -0.1 |
