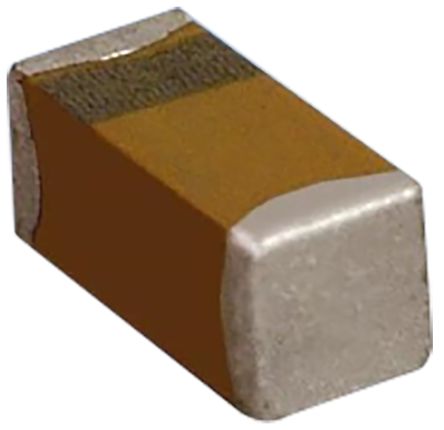

AVX Electrolytic Capacitor 47μF 6.3V dc Electrolytic Solid ±20% Tolerance TAC Series [TACR476M006XTA]; 144-1491
by AVX
0₫
Mã kho: 1441491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 47 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 0805 (2012M) |
| Equivalent Series Resistance | 5Ω |
| Lead Pitch | 0.7mm |
| Tolerance | ±20% |
| Length | 2mm |
| Depth | 1.35mm |
| Height | 1.35mm |
| Dimensions | 2 x 1.35 x 1.35mm |
| Series | TAC |
| Electrolyte Type | Solid |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125°C |
| Dissipation Factor | 0.2 |
| Leakage Current | 3 μA |
| Terminal Type | SMT |
| Tolerance Minus | -0.2 |
| Polarised | Polar |
| Surge Voltage | 8 V @ ≤+85°C |
| Tolerance Plus | 0.2 |
| Minimum Operating Temperature | -55°C |
