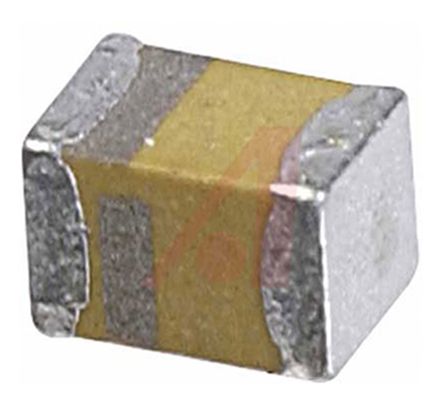

EPCOS Tantalum Capacitor 4.7μF 10V dc Electrolytic Solid ±20% Tolerance TAC Series [TACR475M010RTA]; 887-2907
by AVX
0₫
Mã kho: 8872907
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Electrolytic |
Capacitance | 4.7 µF |
Voltage | 10 V dc |
Mounting Type | Surface Mount |
Package/Case | 2012-15 |
Equivalent Series Resistance | 6Ω |
Lead Pitch | 0.15mm |
Tolerance | ±20% |
Length | 2mm |
Depth | 1.35mm |
Height | 1.35mm |
Dimensions | 2 x 1.35 x 1.35mm |
Series | TAC |
Electrolyte Type | Solid |
Maximum Operating Temperature | +125°C |
Tolerance Plus | 0.2 |
Minimum Operating Temperature | -55°C |
Terminal Type | SMD |
Tolerance Minus | -0.2 |
Leakage Current | 0.5 μA |
Surge Voltage | 8 V @ ≤+125 °C, 13 V @ ≤+85 °C |
Dielectric Material Family | Tantalum |
Dissipation Factor | 0.08 |
