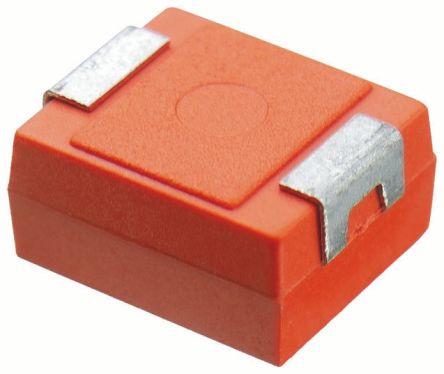

AVX 68μF Niobium Capacitor 6.3V dc ±20% Surface Mount 6mm NOS Series [NOSC686M006R0200]; 166-7724
by AVX
0₫
Mã kho: 1667724
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | NOS |
Capacitance | 68 µF |
Tolerance | ±20% |
Voltage | 6.3 V dc |
Package/Case | 6032-28 |
Mounting Type | Surface Mount |
Equivalent Series Resistance | 0.2Ω |
Dissipation Factor | 0.06 |
Leakage Current | 8.2 μA |
Dimensions | 6 x 3.2 x 2.6mm |
Depth | 3.2mm |
Height | 2.6mm |
Tolerance Minus | -0.2 |
Terminal Type | Surface Mount |
Maximum Operating Temperature | +125°C |
Tolerance Plus | 0.2 |
Length | 6mm |
Minimum Operating Temperature | -55°C |
